DTH // Solar Foundation Drilling Rigs
QMC545

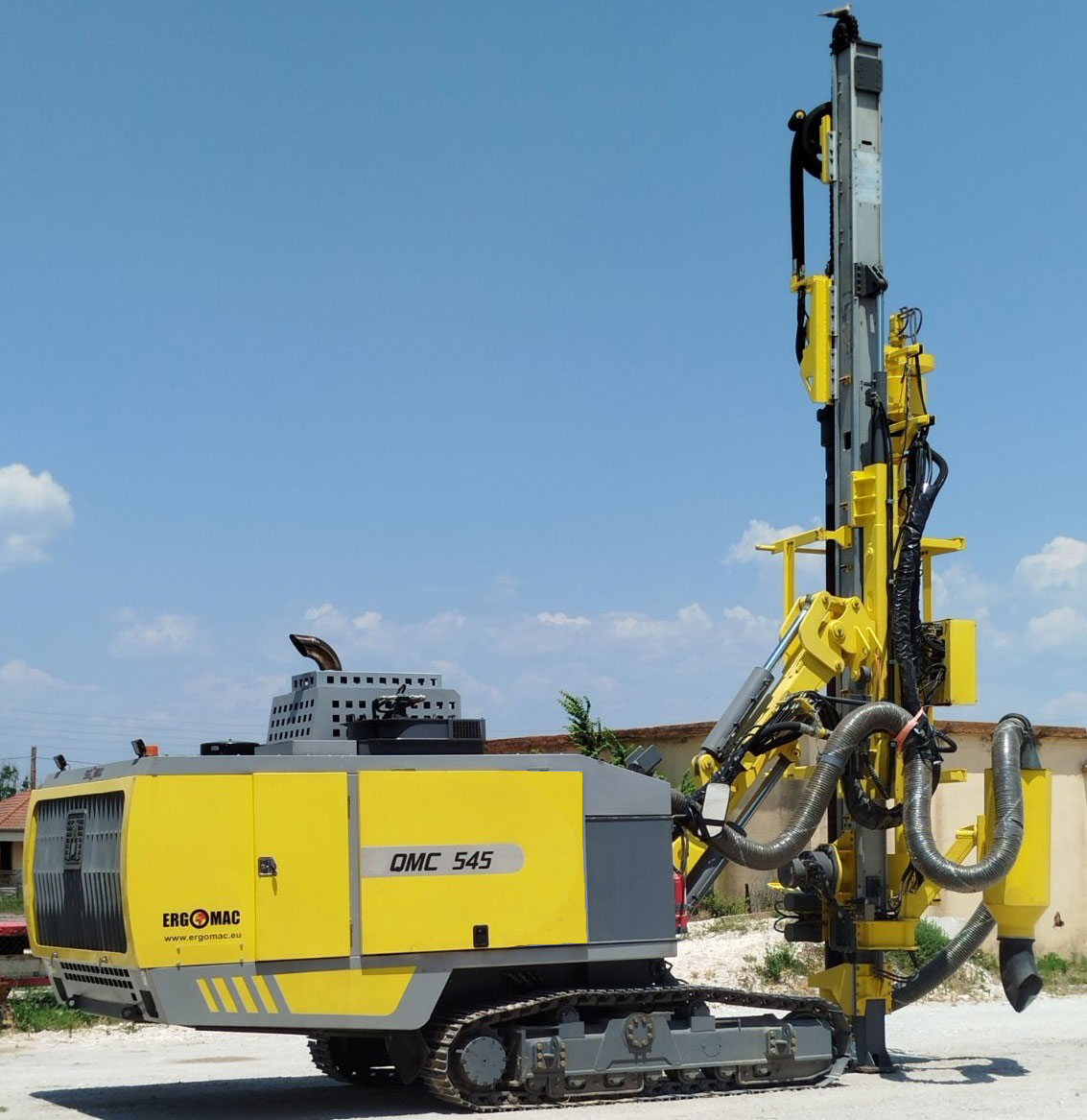

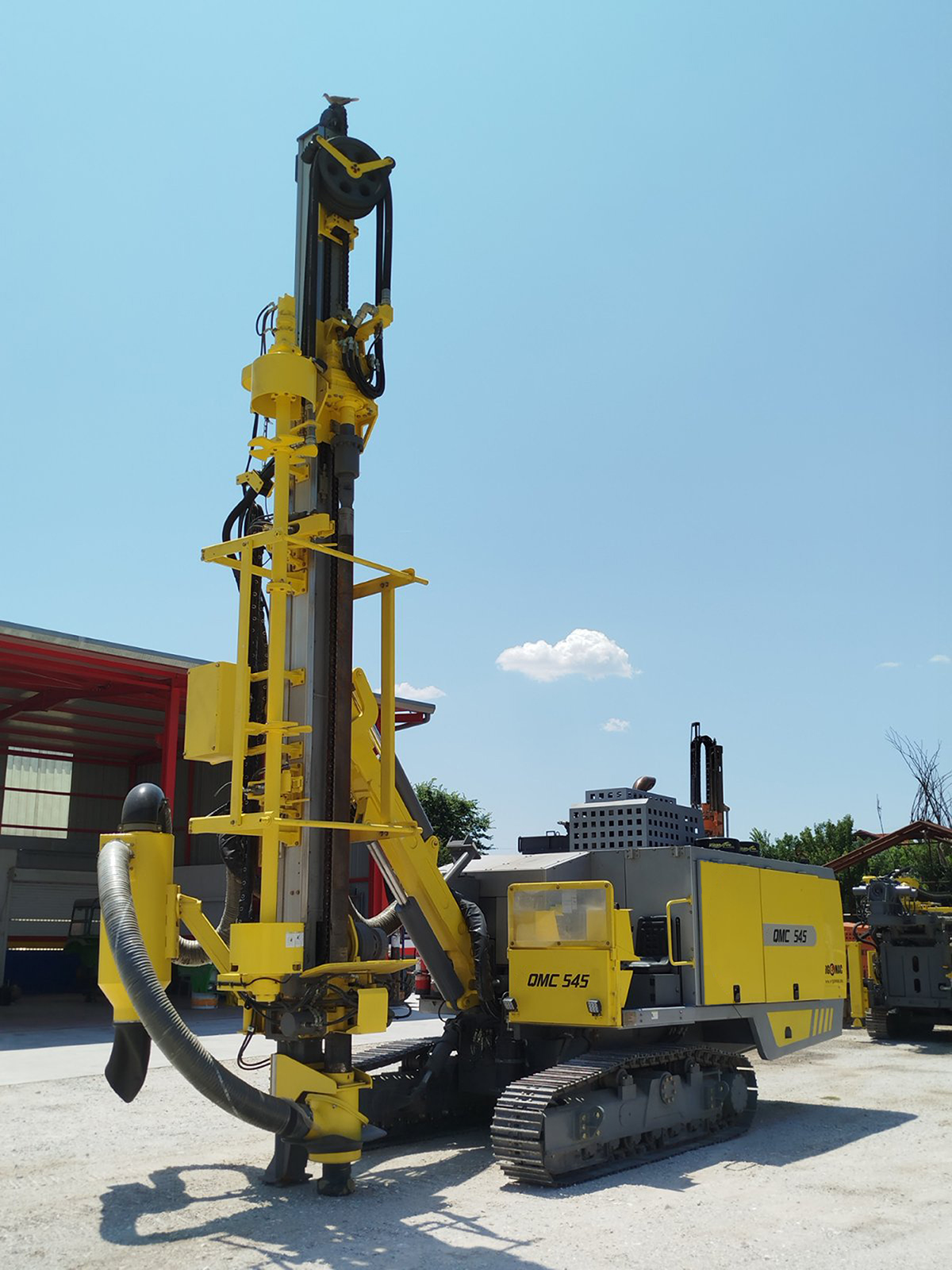

QMC 545 is specially designed for solar panel foundation. It can drill holes with diameter up to 300 mm. Equipped with compressor on board 18 bar-26 m3/min, can support Down the Hole (DTH) hammer up to 8’’.
Automatic rod handling system (RHS) installed on the rig enables it to be used for blast hole drilling. Hole diameter 115-178 mm - Drilling depth 20 m.
| QMC 545 SPECIFICATIONS | |||
| HOLE RANGE | mm | 115-300 | |
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 18 |
| FREE AIR DELIVERY | m3/min | 26 | |
| DRILLING DEPTH | m | 20 | |
| ROD DIAMETER | mm | 89 / 102 | |
| ROD LENGTH | mm | 4000 | |
| DRILL ROD (PIPE) HANDLING SYSTEM (RHS) | PCS | 4 + 1 | |
| ENGINE | Brand | Cummins | |
| Kw | 316 | ||
| ROTATION SPEED | Rpm | 0-110 | |
| ROTATION TORQUE | Nm | 4435 | |
| FEED FORCE | KN | 40 | |
| PULL UP FORCE | KN | 67,6 | |
| TRAMMING SPEED | Km/h | 3 | |
| TRACTION FORCE | KN | 115,4 | |
| CLIMBING ABILITY | ( ) 0 | 25 | |
| TRACK OSCILATION | (+/- ) 0 | 10 | |
| WEIGHT | Kg | 17.600 | |
| GROUND CLEARANCE | mm | 400 | |
| DUST COLLECTOR | STANDARD | ||
| SHIPPING DIMENSIONS | (LXWXH) mm | 12.380X2.480X3.400 | |
