Crawler Pile Drivers

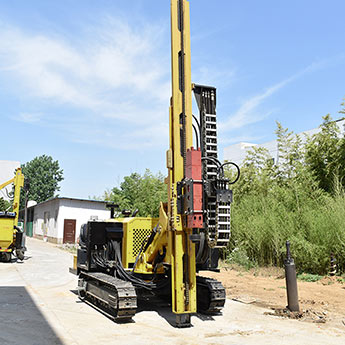

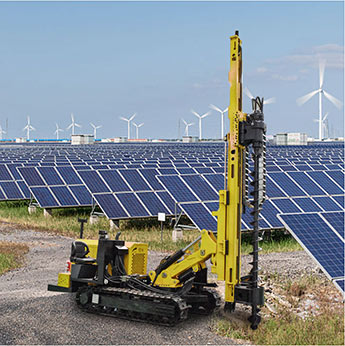

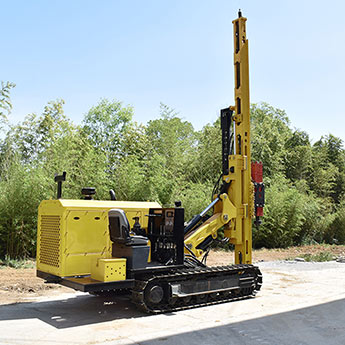

QMC H-71
Piling height up to 6 m
Cummins according to the emission standards required.
Flexible in operation able to rotate 90° it can be used in any construction site.
Robust structure. Integral design of lifting guiderail.
| PILE DRIVERS | QMC-H71 | ||
| RAMMING | PILING HEIGHT | mm | 6000 |
| PILE DEPTH | mm | 5000 | |
| PILE HEIGHT (max) | mm | 6000 | |
| HAMMER IMPACT ENERGY | J | 1200-1800 | |
| DTH - AUGER / SCREW | TORQUE | Nm | 3100-8000 |
| DIAMETER max | mm | 300 | |
| DRILLING DEPTH max | mm | 5000 | |
| ENGINE | CUMMINS | Kw | Cummins 97 Kw |
| DRILLING INCLINATION | FRONT / REAR | ( 0 ) | 20 / 20 |
| HYDRAULIC SYSTEM | PRESSURE | Bar | 180-220 |
| OIL FLOW | lt/min | 160 | |
| CLIMBING ABILITY | ( 0 ) | 30 | |
| TRAMMING SPEED | Km/h | 2,5 | |
| WORKING DIMENSIONS | mm | 3600 X 3400 X 6700 | |
| SHIPPING DIMENSIONS | mm | 6200 X 2100 X 2300 | |
| WEIGHT | Kg | 7500 | |
