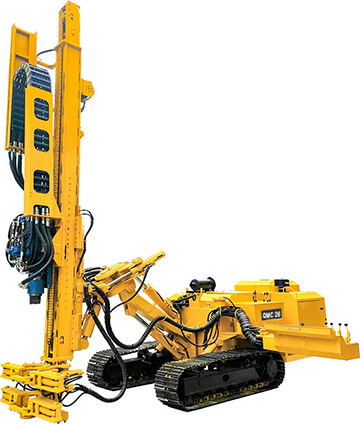

Anchoring Drilling Rig
QMC 26
Anchoring and Foundation drilling rig.
| QMC 26 SPECIFICATIONS | |||
| DRILLING DIAMETER max | mm | 250 | |
| DRILLING DEPTH max | m | 100 | |
| MAX PARALLEL HEIGHT | mm | 3.500 | |
| ENGINE | KW | 162 | |
| POWER HEAD | TORQUE / Rpm | Nm / Rpm | 15000 / 84 |
| 7500 / 128 | |||
| MAX SPEED | Rpm | 150 | |
| IMPACT FREQUENCY | Bpm | 1800 - 2400 | |
| IMPACT ENERGY | J | 800 | |
| FEED | FEED STROKE | mm | 4000 |
| FEED FORCE | KN | 55 | |
| PULL UP FORCE | KN | 100 | |
| WINCH | PULL UP FORCE | KN | 10 |
| WEIGHT | Kg | 10.000 | |
| SHIPPING DIMENSIONS (LxWxH) | (LXWXH) mm | 6800x2200x2600 | |
