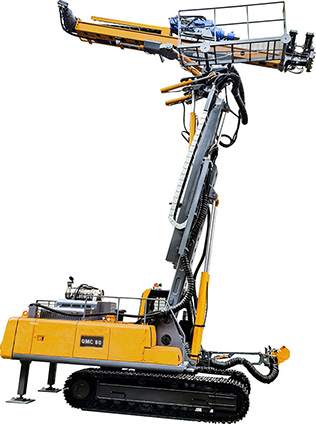

Anchoring Drilling Rig
QMC 80
Anchoring and Foundation drilling rig.
| QMC 80 SPECIFICATIONS | |||
| DRILLING DIAMETER max | mm | 300 | |
| DRILLING DEPTH max | m | 200 | |
| MAX PARALLEL HEIGHT | mm | 11.500 | |
| ENGINE | KW | 179 | |
| POWER HEAD | TORQUE / Rpm | Nm / Rpm | 19000-118 |
| 25000-84 | |||
| MAX SPEED | Rpm | 118 | |
| IMPACT FREQUENCY | Bpm | 1200-1500 / 1800-2300 | |
| IMPACT ENERGY | J | 950-1200 | |
| FEED | FEED STROKE | mm | 4800 |
| FEED FORCE | KN | 55 | |
| PULL UP FORCE | KN | 140 | |
| WINCH | PULL UP FORCE | KN | 10 |
| WEIGHT | Kg | 32.000 | |
| SHIPPING DIMENSIONS (LxWxH) | (LXWXH) mm | 11500x2800x3150 | |
