Screw electric air compressors Portable or Stationary. Equipped with high-efficiency electric motors, precision-engineered compressor elements and advanced cooling systems they ensure consistent performance and minimal maintenance requirements.
Extensive product range covering any application. Air Pressure from 8-24 Bar and Air delivery from 10-40 m3/min.
| ELECTRIC AIR COMPRESSORS SPECIFICATIONS | ||||||
| FAD (m3/ min) |
Air Pressure (Bar) | Electric motor (Kw) |
Compres. Stages | Weight (Kg) | Number of wheels | |
| QMC EP13-08 | 13.2 | 8 | 75 | 1 | 2.020 | 4 |
| QMC EP10-15 | 10 | 14.5 | 75 | 1 | 1.880 | 4 |
| QMC EP11-17 | 11 | 17 | 75 | 2 | 2.500 | 4 |
| QMC EP16-08 | 15.5 | 8 | 90 | 1 | 2.125 | 4 |

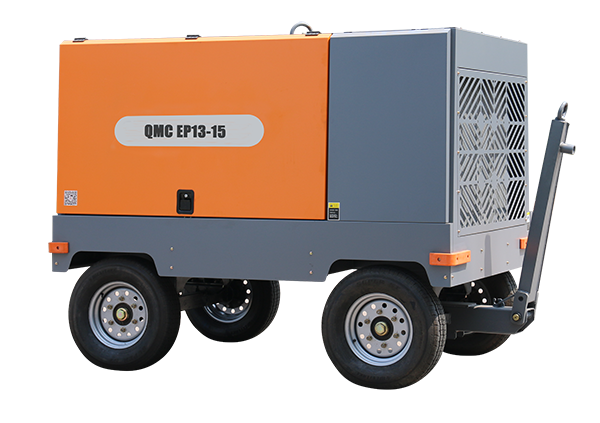

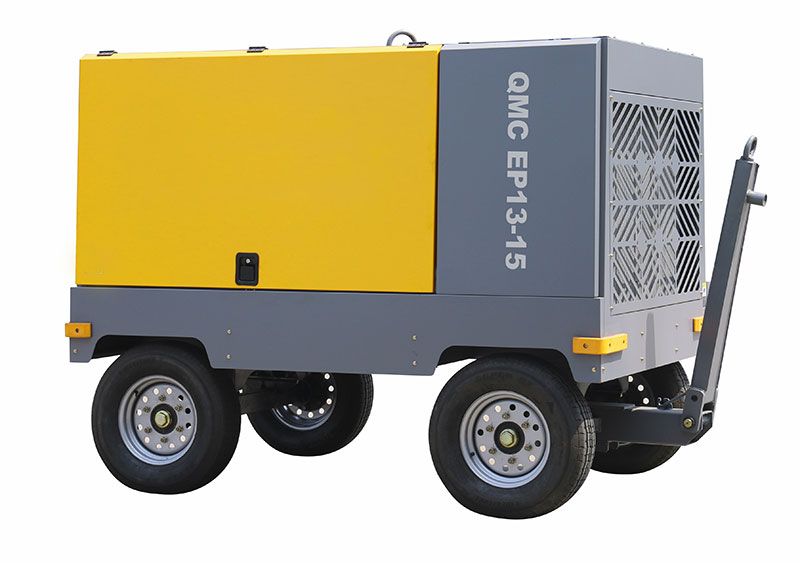

| QMC EP13-15 | 13 | 14.5 | 90 | 1 | 2.145 | 4 |
| QMC EP13-17 | 13 | 17 | 90 | 2 | 2.600 | 4 |
| QMC EP20-08 | 20 | 8 | 110 | 1 | 2.605 | 4 |
| QMC EP15-17 | 15 | 17 | 110 | 1 | 3.000 | 4 |
| QMC EP24-08 | 24 | 8 | 132 | 1 | 2.715 | 4 |
| QMC EP17-13 | 17 | 13 | 132 | 1 | 2.665 | 4 |
| QMC EP15-17 | 15 | 17 | 132 | 1 | 2.665 | 4 |
| QMC EP17-18 | 17 | 18 | 132 | 2 | 3.500 | 4 |
| QMC EP19-17 | 19 | 17 | 185 | 1 | 3.550 | 4 |
| QMC EP22-24 | 22 | 24 | 185 | 2 | 4.100 | 4 |
