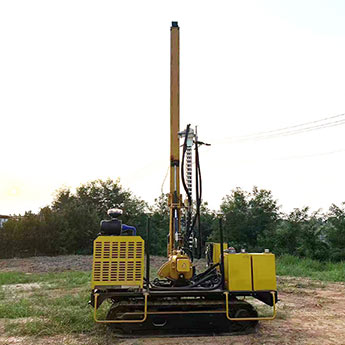

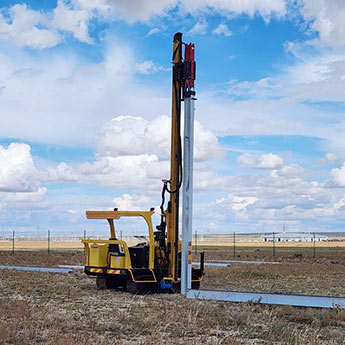

Crawler Pile Drivers
QMC H-51
Customized Piling Height. Standard 5 meters, max 6 meters.
Customized Bore Cap that can be applied to a variety of construction conditions.
Steady Lifting. The guide rail is equipped with double chain lifting to ensure more stable and safe construction.
Vertical Piling. The guide rail is perpendicular to the ground during piling to ensure the verticality of the pile.
Multi-Function. The machine have 4 functions. Ramming, DTH drilling, pre-cast drilling with auger and Screw.
| PILE DRIVERS | QMC-H51 | ||
| RAMMING | PILING HEIGHT | mm | 5000 (max 6000) |
| PILE DEPTH | mm | 3500 | |
| PILE HEIGHT (max) | mm | 6000 | |
| DTH - AUGER / SCREW | TORQUE | Nm | 4000 |
| DIAMETER max | mm | 300 | |
| DRILLING DEPTH max | mm | 3500 | |
| ROD LENGTH | mm | 3500 | |
| ENGINE | CUMMINS | Kw | 70 / 97 |
| DRILLING INCLINATION | LEFT / RIGHT | ( 0 ) | 30 / 10 |
| FRONT / REAR | ( 0 ) | 70 / 30 | |
| HYDRAULIC SYSTEM | PRESSURE | Bar | 160 |
| OIL FLOW | lt/min | 70 | |
| CLIMBING ABILITY | ( 0 ) | 30 | |
| GROUND CLEARANCE | mm | 230 | |
| TRAMMING SPEED | Km/h | 3 | |
| WORKING DIMENSIONS | mm | 3500 X 2200 X 5000 | |
| SHIPPING DIMENSIONS | mm | 6500 X 2200 X 2500 | |
| WEIGHT | Kg | 4500-5500 | |
