Crawler Pile Drivers

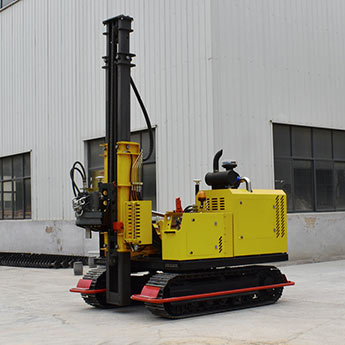

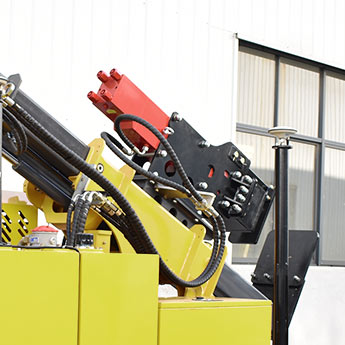

QMC H-61
Smart Control. The pile driver is equipped with one-button straightening system and remote control. GPS system available on request.
Engine options. The machine can be equipped with Yanmar Stage V or Cummins, according to the emission standards required.
Easy To Operate. Only one person can operate the machine.
Flexible in operation able to rotate 90° it can be used in any construction site.
| PILE DRIVERS | QMC-H61 | ||
| RAMMING | PILE HEIGHT (max) | mm | 4200 |
| PILE DEPTH | mm | 3000 | |
| HAMMER IMPACT ENERGY | J | 1250 (85) / 1450 (100) | |
| DIAMETER max | mm | 300 | |
| ENGINE | CUMMINS / YANMAR | Kw | Cummins 60 / 97 - Yanmar 54 |
| DRILLING INCLINATION | FRONT / REAR | ( 0 ) | 20 |
| HYDRAULIC SYSTEM | PRESSURE | Bar | 200 |
| OIL FLOW | lt/min | 120 | |
| SLIDING STROKE (left/right) | mm | 500 | |
| SLIDING STROKE (front/rear)) | mm | 300 | |
| CLIMBING ABILITY | ( 0 ) | 30 | |
| TRAMMING SPEED | Km/h | > 2,5 | |
| WORKING DIMENSIONS | mm | 2500 X 2500 X 5000 | |
| SHIPPING DIMENSIONS | mm | 3500 X 2500 X 2500 | |
| WEIGHT | Kg | 6000 | |
