COMMANDER DRILL

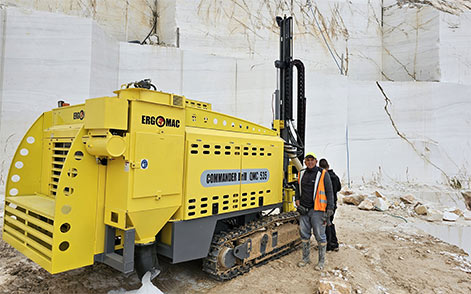

COMMANDER drill rig is equipped with 18 bar compressor on board. Due to this compressor penetration rate in marble is 25-30 m/h. It drills vertical & horizontal holes for passing of diamond wire or blast hole drilling. Hole range 90-115 mm.

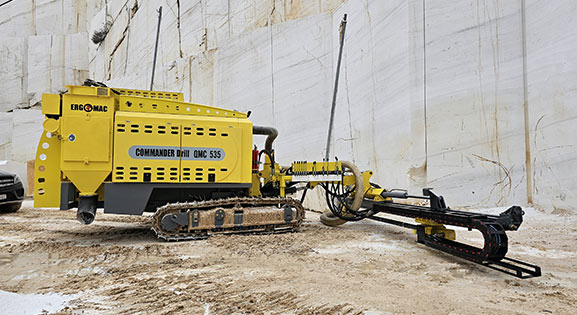

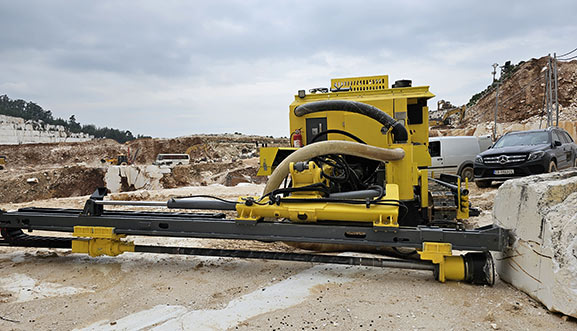

Horizontal holes at 5 cm from the ground
| COMMANDER DRILL SPECIFICATIONS | ||
COMPRESSOR ON BOARD |
YES |
|
WORKING PRESSURE |
Bar |
18 |
FREE AIR DELIVERY |
m3/min |
12 |
HOLE RANGE |
mm |
90-115 |
DRILLING DEPTH |
m |
40 |
ROD DIAMETER |
mm |
76 |
ROD LENGTH |
mm |
3000 |
ENGINE |
Brand |
Cummins 154 / Deutz |
ROTATION SPEED |
Rpm |
0-85 |
ROTATION TORQUE |
Nm |
1650 |
FEED FORCE |
KN |
15 |
PULL UP FORCE |
KN |
26 |
WEIGHT |
Kg |
7000 |
DUST COLLECTOR |
STANDARD |
|
SHIPPING DIMENSIONS |
(LXWXH) mm |
6050X2560X2720 |
