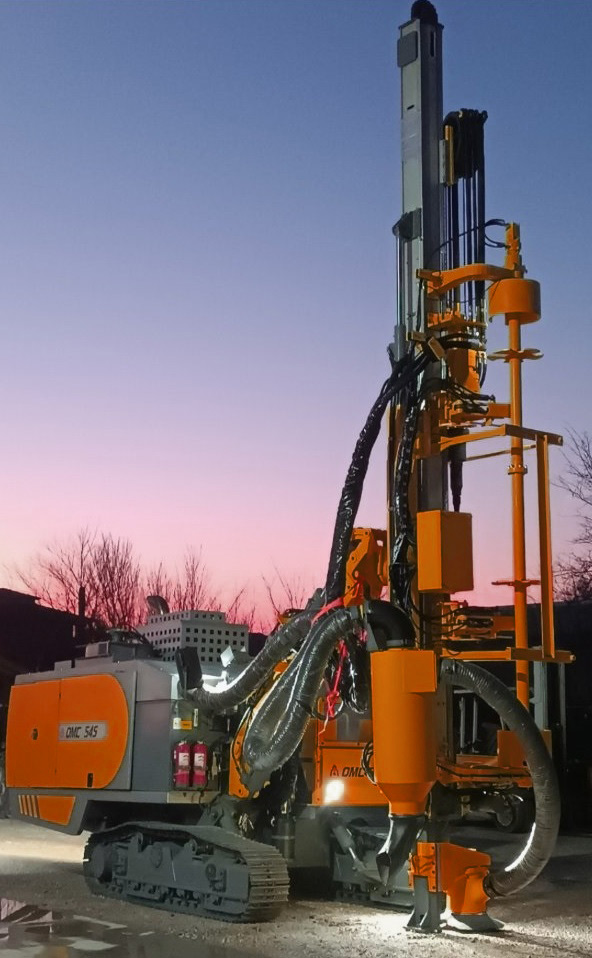

DRILLING RIGS - QMC 545
La QMC545 est une foreuse polyvalente pour fondations. Elle est équipée d'un compresseur et offre un diamètre de forage allant jusqu'à 300 mm.
| QMC 545 CARACTÉRISTIQUES TECHNIQUES | |||
| HOLE RANGE | mm | 115-300 | |
| AIR COMPRESSOR | WORKING PRESSURE | Bar | 18 |
| FREE AIR DELIVERY | m3/min | 26 | |
| DRILLING DEPTH | m | 28 | |
| ROD DIAMETER | mm | 89 / 102 | |
| ROD LENGTH | mm | 4000 | |
| DRILL ROD (PIPE) HANDLING SYSTEM (RHS) | PCS | 4 + 1 | |
| ENGINE | Brand | Cummins | |
| Kw | 316 | ||
| ROTATION SPEED | Rpm | 0-110 | |
| ROTATION TORQUE | Nm | 4435 | |
| FEED FORCE | KN | 40 | |
| PULL UP FORCE | KN | 67,6 | |
| TRAMMING SPEED | Km/h | 3 | |
| TRACTION FORCE | KN | 115,4 | |
| CLIMBING ABILITY | ( ) 0 | 25 | |
| TRACK OSCILATION | (+/- ) 0 | 10 | |
| WEIGHT | Kg | 17.600 | |
| GROUND CLEARANCE | mm | 400 | |
| DUST COLLECTOR | STANDARD | ||
| SHIPPING DIMENSIONS | (LXWXH) mm | 12.380X2.480X3.400 | |
